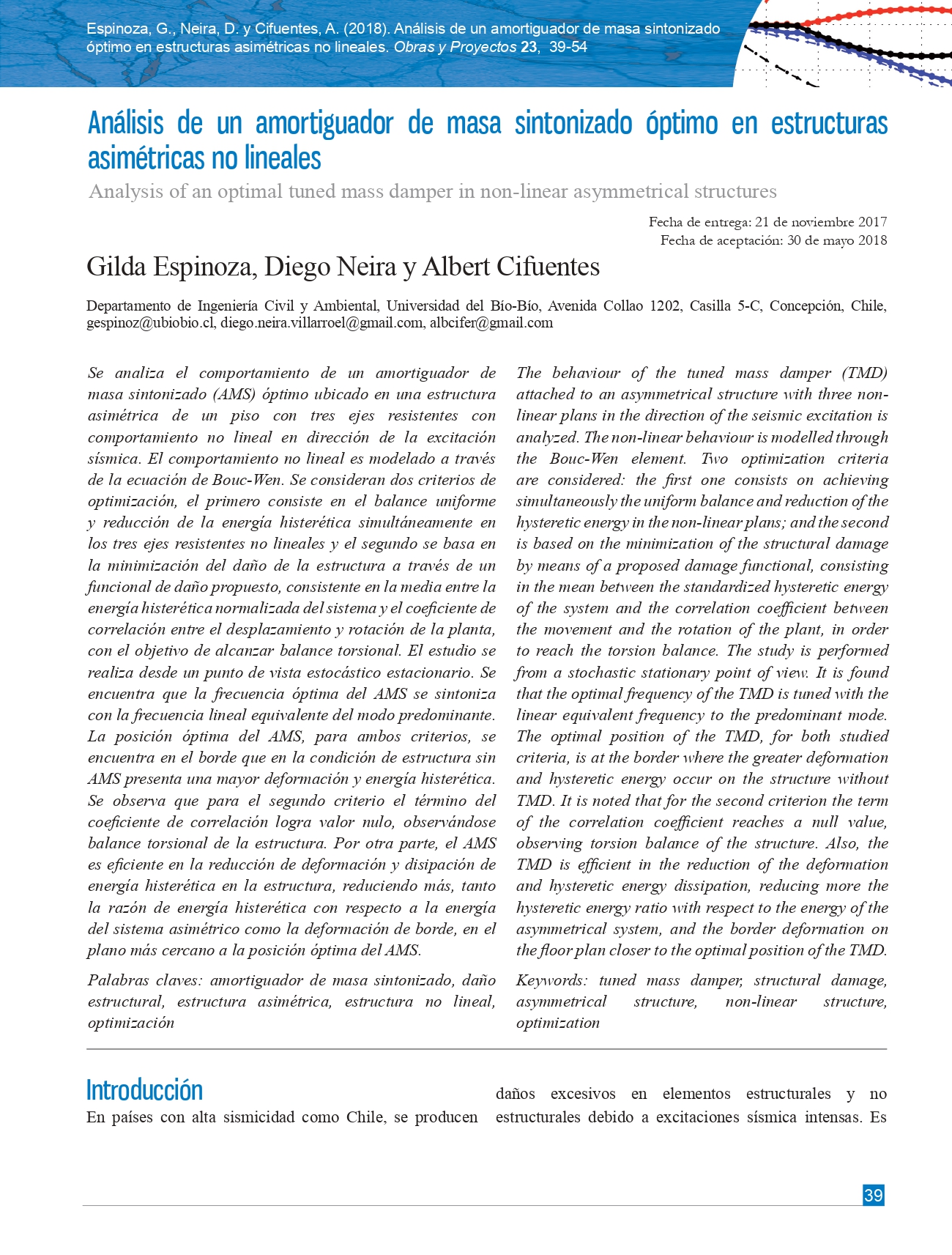

Analysis of an optimal tuned mass damper in non-linear asymmetrical structures
DOI:
https://doi.org/10.4067/s0718-28132018000100039Keywords:
tuned mass damper, structural damage, asymmetrical structure, non-linear structure, optimizationAbstract
The behaviour of the tuned mass damper (TMD) attached to an asymmetrical structure with three nonlinear plans in the direction of the seismic excitation is analyzed. The non-linear behaviour is modelled through the Bouc-Wen element. Two optimization criteria are considered: the first one consists on achieving simultaneously the uniform balance and reduction of the hysteretic energy in the non-linear plans; and the second is based on the minimization of the structural damage by means of a proposed damage functional, consisting in the mean between the standardized hysteretic energy of the system and the correlation coefficient between the movement and the rotation of the plant, in order to reach the torsion balance. The study is performed from a stochastic stationary point of view. It is found that the optimal frequency of the TMD is tuned with the linear equivalent frequency to the predominant mode. The optimal position of the TMD, for both studied criteria, is at the border where the greater deformation and hysteretic energy occur on the structure without TMD. It is noted that for the second criterion the term of the correlation coefficient reaches a null value, observing torsion balance of the structure. Also, the TMD is efficient in the reduction of the deformation and hysteretic energy dissipation, reducing more the hysteretic energy ratio with respect to the energy of the asymmetrical system, and the border deformation on the floor plan closer to the optimal position of the TMD.
References
Almazán, J.L., Espinoza, G. and Aguirre, J.J. (2012). Torsional balance of asymmetric structures by means of tuned mass dampers. Engineering Structures 42, 308-328. https://doi.org/10.1016/j.engstruct.2012.04.034
Baber, T.T. and Wen, Y.K. (1981). Random vibration hysteretic, degrading systems. Journal of the Engineering Mechanics Division 107(6), 1069-1087. https://doi.org/10.1061/JMCEA3.0002768
Benavente-Climent, A., Morillas, L. and Escolano-Margarit, D. (2014). Inelastic torsional seismic response of nominally symmetric reinforced concrete frame structures: Shaking table tests. Engineering Structures 80, 109-117. https://doi.org/10.1016/j.engstruct.2014.08.047
Bouc, R. (1967). Forced vibration of mechanical systems with hysteresis. Fourth Conference on Nonlinear Oscillation, Prague, Czechoslovakia.
Bouc, R. (1969). Modèle mathématique d'hystérésis et application aux systèmes à un degré de liberté. Thése Sc. Phys., University d'Aix-Marseille, France (en Francés)
Clough, R.W. and Penzien, J. (1975). Dynamics of structures. 2nd edition, McGraw-Hill
Den Hartog, J. P. (1947). Mechanical vibrations. McGraw-Hill
Jangid, R.S. and Datta, T.K. (1997). Performance of multiple tuned mass dampers for torsionally couple system. Earthquake Engineering and Structural Dynamics 26(3), 307-317. https://doi.org/10.1002/(SICI)1096-9845(199703)26:3%3C307::AID-EQE639%3E3.0.CO;2-8
Kwok, K.C.S. and Samali, B. (1995). Performance of tuned mass dampers under wind loads. Engineering Structures 17(9), 655-667.https://doi.org/10.1016/0141-0296(95)00035-6
Lin, C.C., Ueng, J.M. and Huang, T.C. (2000). Seismic response reduction of irregular buildings using pasive tuned mass dampers. Engineering Structures 22(5), 513-524
Lin, J.L., Wang, W.C. and Tsai, K.C. (2016). Suitability of using the torsional amplification factor to amplify accidental torsion. Engineering Structures 127, 1-17. https://doi.org/10.1016/j.engstruct.2016.08.042
NCh2745 (2003). Análisis y diseño de edificios con aislación sísmica. Instituto Nacional de Normalización INN, Santiago, Chile.
Sgobba, S. and Marano, G.C. (2010). Optimum design of linear tuned mass dampers for structures with nonlinear behaviour. Mechanical Systems and Signal Processing 26(6), 1739-1755. https://doi.org/10.1016/j.ymssp.2010.01.009
Singh, M.P., Singh, S. and Moreschi, L.M. (2002). Tuned mass dampers for response control of torsional buildings. Earthquake Engineering and Structural Dynamics 31(4), 749-769. https://doi.org/10.1002/eqe.119
Soto-Brito, R. and Ruiz, S. (1999). Influence of ground motion intensity on the effectiveness of tuned mass dampers. Earthquake Engineering and Structural Dynamics 28(11), 1255-1271. https://doi.org/10.1002/(SICI)1096-9845(199911)28:11%3C1255::AID-EQE865%3E3.0.CO;2-C
Ueng, J.M., Lin, C.C. and Wang, J.F. (2008). Practical design issues of tuned mass dampers for torsionally coupled buildings under earthquake loadings. The Structural Desing of Tall and Special Buildings 17(1), 133-165. https://doi.org/10.1002/tal.336
Villaverde, R. (1994). Seismic control of structures with damped resonant appendages. 1st World Conference on Structural Control, Los Angeles, California, USA, vol. 1, 113-122
Wen, Y.K. (1976). Method for random vibration of hysteretic systems. Journal of the Engineering Mechanics Division 102(2), 249-263. https://doi.org/10.1061/JMCEA3.0002106
Wong, K.K. (2008). Seismic energy dissipation of inelastic structures with tuned mass dampers. Journal of Engineering Mechanics 134(2), 163-172. https://doi.org/10.1061/(ASCE)0733-9399(2008)134:2(163)
Zhang, Z. and Balendra, T. (2013). Passive control of bilinear hysteretic structures by tuned mass damper for narrow band seismic motions. Engineering Structures 54, 103-111. https://doi.org/10.1016/j.engstruct.2013.03.044
