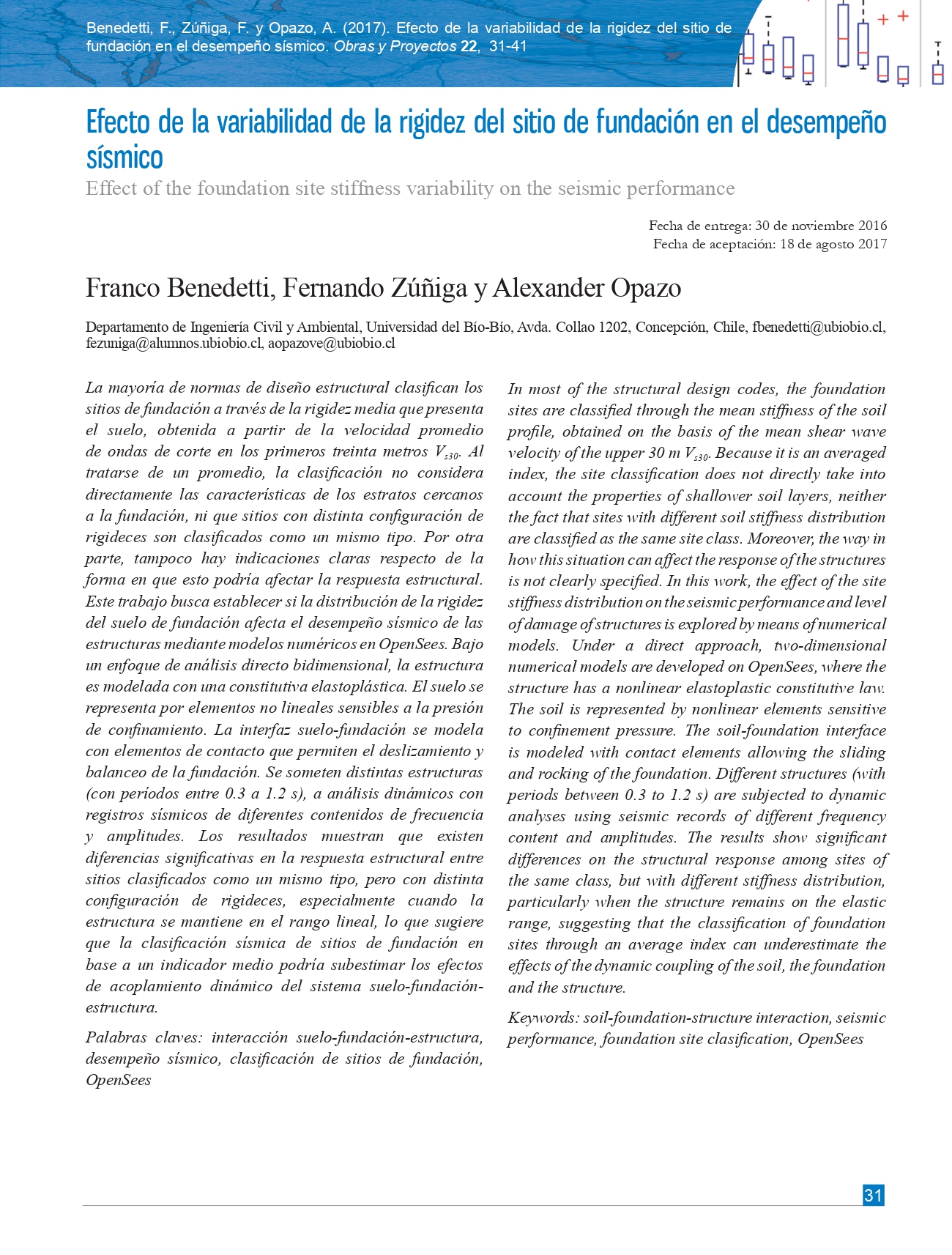

Effect of the foundation site stiffness variability on the seismic performance
DOI:
https://doi.org/10.4067/S0718-28132017000200031Keywords:
soil-foundation-structure interaction, seismic performance, foundation site clasification, OpenSeesAbstract
In most of the structural design codes, the foundation sites are classified through the mean stiffness of the soil profile, obtained on the basis of the mean shear wave velocity of the upper 30 m Vs30. Because it is an averaged index, the site classification does not directly take into account the properties of shallower soil layers, neither the fact that sites with different soil stiffness distribution are classified as the same site class. Moreover, the way in how this situation can affect the response of the structures is not clearly specified. In this work, the effect of the site stiffness distribution on the seismic performance and level of damage of structures is explored by means of numerical models. Under a direct approach, two-dimensional numerical models are developed on OpenSees, where the structure has a nonlinear elastoplastic constitutive law. The soil is represented by nonlinear elements sensitive to confinement pressure. The soil-foundation interface is modeled with contact elements allowing the sliding and rocking of the foundation. Different structures (with periods between 0.3 to 1.2 s) are subjected to dynamic analyses using seismic records of different frequency content and amplitudes. The results show significant differences on the structural response among sites of the same class, but with different stiffness distribution, particularly when the structure remains on the elastic range, suggesting that the classification of foundation sites through an average index can underestimate the effects of the dynamic coupling of the soil, the foundation and the structure.
References
Anastasopoulos, I., Gazetas, G., Loli, M., Apostolou, M. and Gerolymos, N. (2010). Soil failure can be used for seismic protection of structures. Bulletin of Earthquake Engineering 8(2), 309-326. https://doi.org/10.1007/s10518-009-9145-2
ASCE (2010). Minimum design loads for buildings and other structures. American Society of Civil Engineers ASCE/SEI 7-10
ATC (2005). Improvement of nonlinear static seismic analysis procedures. Applied Technology Council. FEMA 440
Bielak, J., Loukakis, K., Hisada, Y. and Yoshimura, C. (2003). Domain reduction method for three-dimensional earthquake modeling in localized regions, part I: Theory. Bulletin of the Seismological Society of America 93(2), 817-824. https://doi.org/10.1785/0120010251
Borcherdt, R.D. (1994). Estimates of site-dependent response spectra for design (methodology and justification). Earthquake Spectra 10(4), 617-653. https://doi.org/10.1193/1.1585791
BSSC (2003). NEHRP recommended provisions for seismic regulations for new buildings and other structures. FEMA 450 and Building Seismic Safety Council
Conover, W.J. (1998). Nonparametric statistics. JohnWiley and Sons
Dobry, R., Martin, G.M., Parra, E. and Bhattacharyya, A. (1992). Development of site-dependent ratios of elastic response spectra (RRS) and site categories for building seismic codes. NCEER/ SEAOC/BSSC Workshop on Site Response during Earthquakes and Seismic Code Provisions
Elgamal, A., Yang, Z. and Parra, E. (2002). Computational modeling of cyclic mobility and post-liquefaction site response. Soil Dynamics and Earthquake Engineering 22(4), 259-271. https://doi.org/10.1016/S0267-7261(02)00022-2
ECS (2004). Design of structures for earthquake resistance. Eurocode 8. European Committee for Standardization
Ghannad, M.A. and Jafarieh, A.H. (2014). Inelastic displacement ratios for soil-structure systems allowed to uplift. Earthquake Engineering & Structural Dynamics 43(9), 1401-1421. https://doi.org/10.1002/eqe.2405
Gazetas, G. and Apostolou, M. (2004). Nonlinear soil-structure interaction: foundation uplifting and soil yielding. Third USA-Japan Workshop on Soil-Structure Interaction. Menlo Park, California, USA.
Jeremić, B., Jie, G., Preisig, M. and Tafazzoli, N. (2009). Time domain simulation of soil-foundation-structure interaction in non-uniform soils. Earthquake Engineering & Structural Dynamics 38(5), 699-718. https://doi.org/10.1002/eqe.896
Joyner, W.J. and Boore, D.M. (1993). Methods for regression analysis of strong-motion data. Bulletin of the Seismological Society of America 83(2), 469-487
Kausel, E. (1976). Soil - structure interaction. Soil dynamics for earthquake design. International Centre for Computer-aided Design ICCAD, Santa Margherita, Italy
Lagos, R., Kupfer, M., Lindenberg, J., Bonelli, P., Saragoni, R., Guendelman, T., Massone, L., Boroschek, R. and Yañez, F. (2012). Seismic performance of high-rise concrete buildings in Chile. International Journal of High-Rise Buildings 1(3), 181-194
Lysmer, J. and Kuhlemeyer, R.L. (1969). Finite dynamic model for infinite media. Journal of Engineering Mechanics Division 95(4), 859-878. https://doi.org/10.1061/JMCEA3.0001144
McGann, C.R., Arduino, P. and Mackenzie-Helnwein, P. (2012). Stabilized single-point 4-node quadrilateral element for dynamic analysis of fluid saturated porous media. Acta Geotechnica 7(4), 297-311. https://doi.org/10.1007/s11440-012-0168-5
Mazzoni, S., McKenna, F., Scott, M.H. and Fenves, G.L. (2006). The Open System for Earthquake Engineering Simulation (OpenSEES). User command-language manual. University of California, USA
MINVU (2011). DS 61. Diseño sísmico de edificios. Ministerio de Vivienda y Urbanismo.
Moghaddasi, M., Cubrinovski, M., Chase, J.G., Pampanin, S. and Carr, A. (2011). Effects of soil-foundation-structure interaction on seismic structural response via robust Monte Carlo simulation. Engineering Structures 33(4), 1338-1347. https://doi.org/10.1016/j.engstruct.2011.01.011
Mylonakis, G. and Gazetas, G. (2000). Seismic soil-structure interaction: beneficial or detrimental?. Journal of Earthquake Engineering 4(3), 277-301. https://doi.org/10.1080/13632460009350372
NCh 433 (2009). Diseño sísmico de edificios. NCh 433 Of.1996 Mod 2009. INN, Santiago
Stewart, J., Fenves, G. and Seed, R. (1999). Seismic soil-structure interaction in buildings. I: Analytical methods. Journal of Geotechnical and Geoenvironmental Engineering 125(1), 26-37. https://doi.org/10.1061/(ASCE)1090-0241(1999)125:1(26)
SEAOC (1995). A framework for performance-based in earthquake engineering. Structural Engineers Association of California. Vision 2000 committee
Yang, Z., Lu, J. and Elgamal, A. (2008). OpenSees Soil Models and Solid-Fluid Fully Coupled Elements User's Manual. San Diego, USA: University of California.
Yoshimura, C., Bielak, J., Hisada, Y. and Fernández, A. (2003). Domain reduction method for three-dimensional earthquake modeling in localized regions, part II: Verification and Applications. Bulletin of the Seismological Society of America 93(2), 825-841. https://doi.org/10.1785/0120010252
Zhang, G. and Zhang, J. (2009). State of the art: Mechanical behavior of soil-structure interface. Progress in Natural Science 19(10), 1187-1196. https://doi.org/10.1016/j.pnsc.2008.09.012
